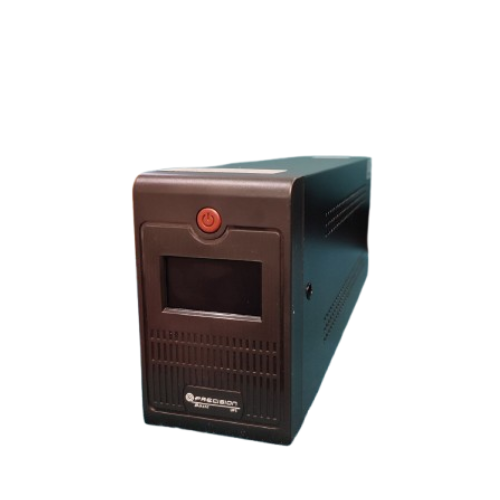

PRECISION BASIC UPS 650VA

₱2,495.00

A UPS is an advanced line interactive uninterruptible power system that is designed to protect your equipment like computers and telecommunication systems blackout when power off. Under normal power condition, the UPS filters out all small fluctuations. during electrical power failure the unit immediately switches to its internal battery for continued power feed to the equipment it is linked to, thus allowing the system to be shutdown correctly which, for example on a computer would prevent files from being left open and result in corruption.

Categories: ,

Description

SPECIFICATIONS

INPUT VOLTAGE: 110VAC/220VAC ± 25%, (5% ADJUSTABLE)

INPUT FREQUENCY: 50Hz OR 60Hz ± 6%

OUTPUT FREQUENCY: 50Hz OR 60Hz ± 1%

OUTPUT VOLTAGE: 110VAC/220VAC (± 10% ADJUSTABLE)

OUTPUT WAVE FORM: SINE WAVE UNDER MUNICIPAL SUPPLY, SQUARE WAVE UNDER BATTERY OPERATION

PROTECTION LOAD INPUT: FUSE FOR OVERLOAD & SHORT CIRCUIT PROTECTION

PROTECTION SHORT CIRCUIT: FUSE & CURRENT LIMITED & CUT OFF

BATTERY BACKUP TIME: 15-35 MINS DEPEND ON THE LOAD

BATTERY TYPE: SEALED LEAD-ACID BATTERY

BATTERY PROTECTION: AUTO-INSPECTION, DISCHARGE PROTECTION AND BATTERY FAULT CAUTION

BATTERY: NORMARLLY BATTERY IS CHARGE ONECE THREE MONTHS; IT ISN’T LESS THAN 6 HOURS ONCE A TIME.

AUDIBLE ALARM BATTERY LOW VOLTAGE: BUZZER KEEP RINGS, RED LIGHT ON

AUDIBLE ALARM OVERLOAD/SHORT CIRCUIT: CONTINOUSLY
